Ultrasonic Plastic Welding Machines

JSB Ultrasonic is a manufacturer and supplier of
ultrasonic plastic welding machines for industrial applications
where compatible thermoplastic components need fast, clean, precise and repeatable
joining. Our ultrasonic welding solutions are available in different frequencies,
power configurations and machine formats to meet the requirements of automotive,
electronics, medical, packaging, electrical, consumer and general plastic
manufacturing industries.

Our range includes 15kHz ultrasonic plastic welding machines,
20kHz ultrasonic plastic welding machines, high-power ultrasonic
welding systems, handheld ultrasonic welding equipment, customized ultrasonic
welding machines, ultrasonic generators, transducers, boosters and welding horns.
Each application can be evaluated according to the plastic material, component
dimensions, welding area, joint design, required weld strength and production
volume.

If you are looking for an ultrasonic plastic welding machine in India,
JSB Ultrasonic can help you select a suitable machine and tooling configuration
for your product. Our objective is to provide practical ultrasonic welding
solutions for both standard and customized manufacturing requirements.

What Is an Ultrasonic Plastic Welding Machine?

An ultrasonic plastic welding machine is an industrial joining system used to
bond compatible thermoplastic components using high-frequency mechanical
vibration and controlled pressure. The process concentrates ultrasonic energy
at a specifically designed joint between the plastic components.

During the welding cycle, the ultrasonic generator supplies electrical energy to
the transducer. The transducer converts the electrical signal into mechanical
vibration. A booster can modify the vibration characteristics, while the
ultrasonic horn transfers the vibration to the component.

The controlled vibration produces localized heat at the welding interface.
Suitable thermoplastic surfaces soften and fuse together. After the ultrasonic
energy stops, the components remain under pressure for a controlled holding
period, allowing the joint to stabilize.

Because the welding energy is concentrated at the joint rather than heating the
entire component, ultrasonic welding can provide a fast and controlled joining
method for many thermoplastic products.

How Does Ultrasonic Plastic Welding Work?

The ultrasonic plastic welding process consists of several controlled stages.
The exact parameters depend on the material, product design, horn and machine
configuration.

1. Component loading:
   The plastic parts are placed in a product-specific fixture and aligned correctly.
2. Clamping:
   The machine applies controlled pressure to hold the components in position.
3. Ultrasonic activation:
   The generator sends the required electrical signal to the ultrasonic transducer.
4. Mechanical vibration:
   The transducer converts electrical energy into high-frequency mechanical vibration.
5. Energy transfer:
   The booster and horn transfer the vibration to the designed welding area.
6. Localized heating:
   Controlled ultrasonic vibration creates localized heat at the joint interface.
7. Welding:
   The compatible thermoplastic surfaces soften and form the required welded joint.
8. Holding and cooling:
   Pressure is maintained for a controlled period before the finished component is
   released.

Ultrasonic Plastic Welding Machine Range

Different plastic products require different ultrasonic welding configurations.
JSB Ultrasonic offers multiple machine options based on frequency, power,
component size and application requirements.

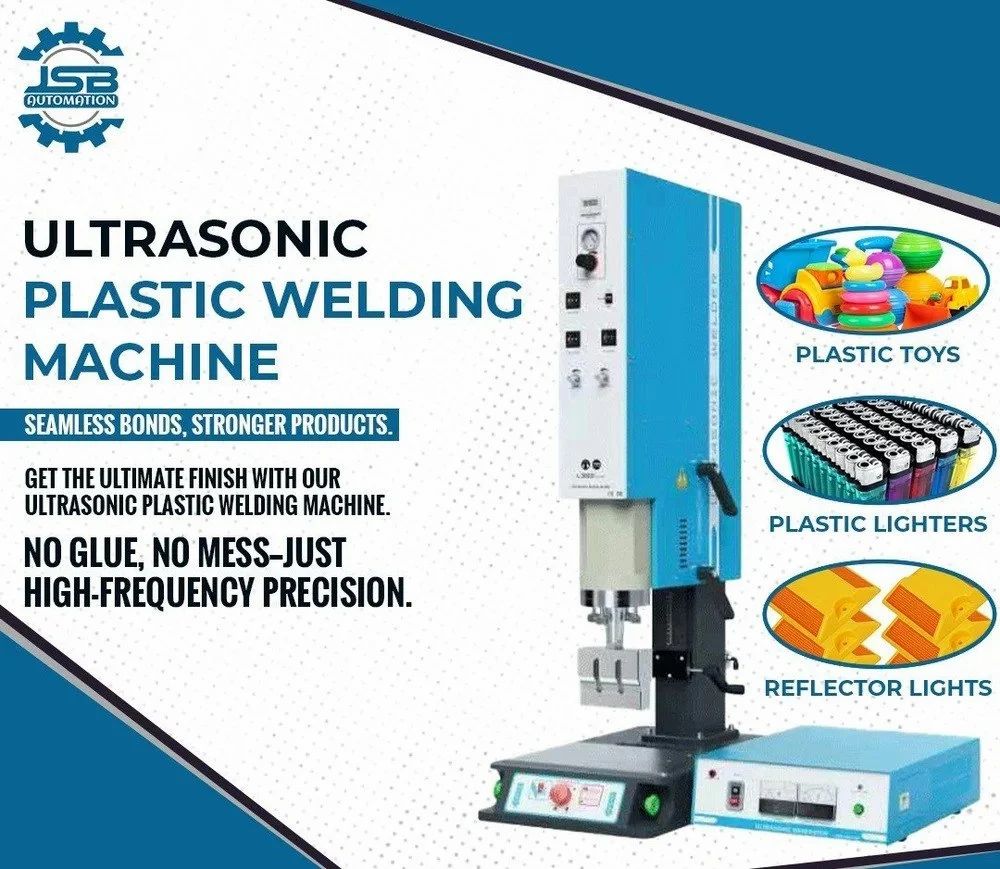

15kHz Ultrasonic Plastic Welding Machine

A 15kHz ultrasonic plastic welding machine can be considered
for larger, thicker or more demanding thermoplastic components where higher
ultrasonic power and stronger mechanical vibration may be required.

Our

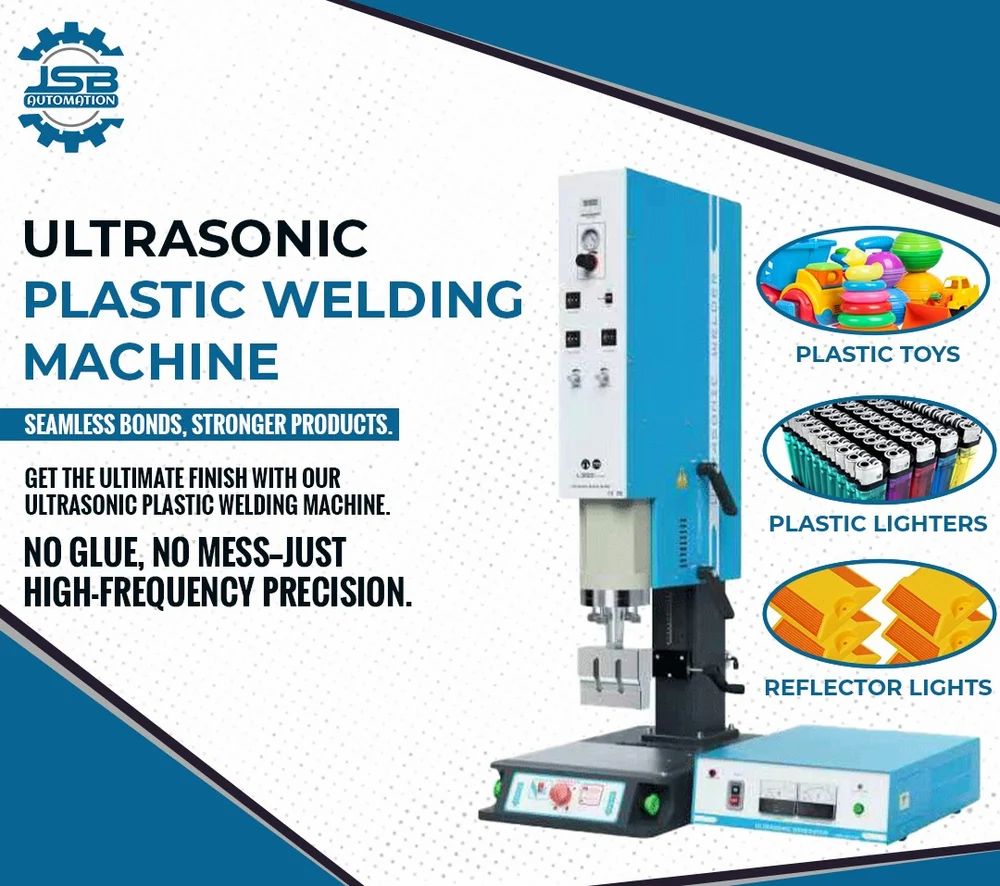

15kHz 2600W Ultrasonic Plastic Welding Machine

is designed for industrial plastic welding applications where a higher-power
configuration is required.

20kHz Ultrasonic Plastic Welding Machine

A 20kHz ultrasonic plastic welding machine is widely used for
industrial thermoplastic joining applications. It can provide a useful
combination of welding speed, controlled vibration and production repeatability
for many suitable components.

JSB Ultrasonic offers a

20kHz 2000W Ultrasonic Plastic Welding Machine

for industrial plastic joining applications.

Handheld Ultrasonic Plastic Welding Machine

A handheld ultrasonic welding system provides flexibility for applications where
a fixed automatic machine may not be practical. It can be considered for
localized welding, smaller production requirements, repair work and specialized
plastic joining applications.

Explore our

Ultrasonic Plastic Welding Handgun

for applications that require a flexible handheld welding solution.

Customized Ultrasonic Plastic Welding Machines

Some components cannot be efficiently welded using a standard machine because
of their shape, dimensions, welding points or production process. In such cases,
a customized ultrasonic welding machine can be developed around the product.

Customized solutions may include special ultrasonic horns, product fixtures,
pneumatic clamping systems, multiple welding points, semi-automatic systems
and automatic production arrangements.

Our Ultrasonic Plastic Welding Products

JSB Ultrasonic provides a range of ultrasonic welding equipment and supporting
components for different manufacturing requirements. Explore the relevant
products below:

•
  15kHz 2600W Ultrasonic Plastic Welding Machine

•
  20kHz 2000W Ultrasonic Plastic Welding Machine

•
  20kHz Ultrasonic Plastic Welding Machine

•
  Ultrasonic Plastic Welding Handgun

•
  Ultrasonic Plastic Welding Hand Gun for Automobile Industry

•
  Pneumatic Ultrasonic Spot Welding Machine

•
  Ultrasonic Plastic Welding Machine for Medical Industry

•
  Ultrasonic Plastic Welding Horn

•
  Ultrasonic Welding Horn

•
  20kHz Ultrasonic Generator Box


Applications of Ultrasonic Plastic Welding Machines

Ultrasonic plastic welding can be used in many industries where compatible
thermoplastic components need to be joined accurately and repeatedly. The
appropriate machine and tooling depend on the product construction and welding
requirements.

Automotive Plastic Welding

Automotive products contain many moulded plastic housings, covers, interior
components, ducts, filters and other assemblies. Suitable thermoplastic
components can be evaluated for ultrasonic welding when manufacturers require
repeatable joining and controlled production cycles.

For automotive applications, JSB Ultrasonic also offers an

ultrasonic plastic welding hand gun for automobile applications
.

Electrical and Electronics Plastic Welding

Electrical and electronic products frequently use plastic housings, covers,
enclosures, connectors and protective components. Ultrasonic welding can be
considered for suitable thermoplastic assemblies where consistent joining and
efficient production are required.

Medical Plastic Welding

Suitable thermoplastic medical and healthcare components can be evaluated for
ultrasonic welding. Applications may include selected filters, connectors,
tubes, housings and disposable medical components.

JSB Ultrasonic provides a dedicated

ultrasonic plastic welding machine for medical industry applications
.

Medical applications require careful evaluation of materials, cleanliness,
product design, validation and applicable regulatory requirements before
production.

Plastic Packaging

Plastic containers, covers, packaging components and other compatible
thermoplastic products can be evaluated for ultrasonic welding. The process can
be useful where manufacturers require repeatable assembly and controlled
production cycles.

Battery and EV Plastic Components

The increasing use of plastic housings and protective components in battery
and electric vehicle products creates opportunities for ultrasonic joining.
Suitable components should be evaluated according to material, geometry,
joint design and required weld performance.

Consumer and Household Products

Plastic housings, covers, containers and household components can be suitable
for ultrasonic welding when the product material and joint design meet the
requirements of the process.

Industrial Plastic Components

Industrial products often require repeatable assembly of moulded plastic parts.
Ultrasonic welding can be considered for housings, covers, filters, fittings,
components and other compatible thermoplastic assemblies.

Which Plastics Can Be Welded Using Ultrasonic Welding?

Ultrasonic welding is primarily used for compatible thermoplastic materials.
However, weldability is not determined by material name alone. Material grade,
additives, component geometry, joint design, moisture content and other factors
can influence the final welding result.

Depending on the application, thermoplastics such as
PP, ABS, PVC, PET, PC, PMMA and Nylon may be considered for
ultrasonic welding.

Before selecting a machine, it is recommended to evaluate the actual material
and component because two products made from the same general plastic family
can have different welding characteristics.

Advantages of Ultrasonic Plastic Welding

When correctly matched with the material, product design and tooling, ultrasonic
welding provides several advantages for industrial plastic assembly.

• Fast welding cycles:
  Suitable products can be welded in short and repeatable production cycles.
• Clean joining process:
  The process does not require conventional adhesive application for suitable
  welding applications.
• Repeatable production:
  Controlled welding parameters can help maintain consistency across production.
• Localized energy:
  Ultrasonic energy is concentrated at the designed joint area.
• Reduced consumables:
  Suitable applications may reduce the need for adhesives, screws or other
  joining materials.
• Automation friendly:
  Ultrasonic welding systems can be integrated into semi-automatic and automatic
  production lines.
• Compact process:
  The equipment can provide an efficient joining solution without requiring a
  large heating area around the complete component.
• Suitable for high-volume manufacturing:
  The repeatable cycle can make ultrasonic welding suitable for many production
  environments.

Ultrasonic Generator, Transducer, Booster and Horn

The performance of an ultrasonic plastic welding system depends on several
components working together. The main system generally includes an ultrasonic
generator, transducer, booster and horn.

Ultrasonic Generator

The ultrasonic generator produces the electrical signal required to operate
the ultrasonic system. The generator must be matched to the transducer and
machine configuration.

JSB Ultrasonic also supplies

ultrasonic generator boxes

for suitable ultrasonic welding applications.

Ultrasonic Transducer

The ultrasonic transducer converts electrical energy into mechanical vibration.
Its frequency and characteristics need to match the welding system.

Ultrasonic Booster

The booster transfers vibration from the transducer toward the horn and can
modify the amplitude according to the system design.

Ultrasonic Horn

The ultrasonic horn transfers mechanical vibration directly to the product.
Horn geometry is highly important because the horn must contact the component
at the correct location and distribute ultrasonic energy appropriately.

Explore our

ultrasonic plastic welding horns

for application-specific tooling requirements.

How to Choose the Right Ultrasonic Plastic Welding Machine

Selecting an ultrasonic welding machine based only on frequency or power is
not recommended. A proper machine selection should consider the complete
product and production process.

1. Plastic Material

The exact plastic material and grade should be identified before machine
selection. Different thermoplastics have different welding characteristics.

2. Component Size

Product dimensions, wall thickness and overall component construction influence
the required machine power and horn configuration.

3. Welding Area

The size and shape of the weld area influence horn design and the amount of
ultrasonic energy required.

4. Joint Design

A properly designed ultrasonic joint helps transfer vibration efficiently and
can improve welding consistency.

5. Required Weld Strength

The required mechanical strength, sealing performance and appearance of the
finished assembly should be considered when selecting the welding process.

6. Production Quantity

Manual, handheld, semi-automatic and automatic machines can be considered
depending on production volume and workflow.

7. Automation Requirements

High-volume manufacturing may benefit from automated component loading,
clamping, welding and unloading arrangements.

Customized Ultrasonic Plastic Welding Solutions

Standard ultrasonic welding machines are suitable for many applications, but
special products may require customized tooling or machine arrangements.
JSB Ultrasonic can provide application-oriented solutions based on the product
and manufacturing process.

Customized solutions can include:

• Customized ultrasonic horns
• Product-specific welding fixtures
• Pneumatic clamping systems
• Multiple welding-point arrangements
• Special-purpose ultrasonic welding machines
• Semi-automatic welding systems
• Automatic ultrasonic welding systems
• Production-line integration

Ultrasonic Plastic Welding Machine Price in India

The ultrasonic plastic welding machine price in India depends
on the machine frequency, ultrasonic power, welding area, horn design, fixture,
control system, pneumatic arrangement and level of automation.

A compact machine for a small plastic component will have different requirements
from a high-power industrial system designed for larger components. Customized
horns, fixtures and automation can also influence the total machine cost.

For this reason, manufacturers should select an ultrasonic welding machine based
on the complete application rather than comparing machines only by price.

To receive a suitable quotation, provide the component details, plastic material,
welding area, required weld strength, production quantity and preferred level
of automation.

Ultrasonic Plastic Welding Machine Manufacturer in India

JSB Ultrasonic supplies ultrasonic plastic welding machines
and related ultrasonic equipment for manufacturers across India. Our product
range covers ultrasonic welding machines, handheld welding equipment, generators,
horns and application-specific welding solutions.

Our ultrasonic welding equipment can be considered for automotive, electronics,
electrical, medical, packaging, consumer products, industrial plastics,
battery-related components and other suitable thermoplastic applications.

Based in New Delhi, JSB Ultrasonic serves customers in major manufacturing
locations across India and provides application-oriented assistance for machine
and tooling selection.

Why Choose JSB Ultrasonic?

• Industrial ultrasonic welding solutions
• 15kHz and 20kHz machine configurations
• High-power ultrasonic welding options
• Application-specific welding equipment
• Customized ultrasonic horns
• Product-specific welding fixtures
• Ultrasonic generators and related components
• Handheld ultrasonic welding equipment
• Semi-automatic and automatic solutions
• Technical assistance for machine selection
• Solutions for manufacturers across India

Ultrasonic Plastic Welding Machines in Major Indian Cities

JSB Ultrasonic supplies ultrasonic welding equipment to manufacturers in
different industrial regions of India. Visit the following location pages
to learn more about ultrasonic plastic welding solutions for specific cities.

•
  Ultrasonic Plastic Welding Machine in New Delhi

•
  Ultrasonic Plastic Welding Machine in Bangalore

•
  Ultrasonic Plastic Welding Machine in Chennai

•
  Ultrasonic Plastic Welding Machine in Hyderabad

•
  Ultrasonic Plastic Welding Machine in Ahmedabad

•
  Ultrasonic Plastic Welding Machine in Jaipur

•
  Ultrasonic Plastic Welding Machine in Kochi

•
  Ultrasonic Plastic Welding Machine in Ludhiana

•
  Ultrasonic Plastic Welding Machine in Mumbai

•
  Ultrasonic Plastic Welding Machine in Pune

•
  Ultrasonic Plastic Welding Machine in Gurgaon

•
  Ultrasonic Plastic Welding Machine in Noida


Related Ultrasonic Welding Solutions

In addition to plastic welding machines, JSB Ultrasonic offers related
ultrasonic equipment and specialized machines for different manufacturing
applications.

•
  Ultrasonic Welding Horn

•
  Ultrasonic Plastic Welding Horn

•
  Ultrasonic Generator Box

•
  Ultrasonic Spot Welding Machine

•
  Ultrasonic Plastic Welding Handgun

•
  Ultrasonic Welding Machine for Medical Applications


Get a Quote for an Ultrasonic Plastic Welding Machine

Are you looking for an ultrasonic plastic welding machine
for your manufacturing process? Contact JSB Ultrasonic with your product
details and production requirements.

For machine selection, provide information such as the plastic material,
component dimensions, welding area, joint type, required weld strength,
number of welding points and expected production quantity.

If available, product samples, photographs or technical drawings can also
help determine the appropriate ultrasonic horn, fixture and machine
configuration.

Contact JSB Ultrasonic for ultrasonic plastic welding machines,
customized horns, generators, transducers, fixtures and application-specific
ultrasonic welding solutions.

Frequently Asked Questions About Ultrasonic Plastic Welding Machines
