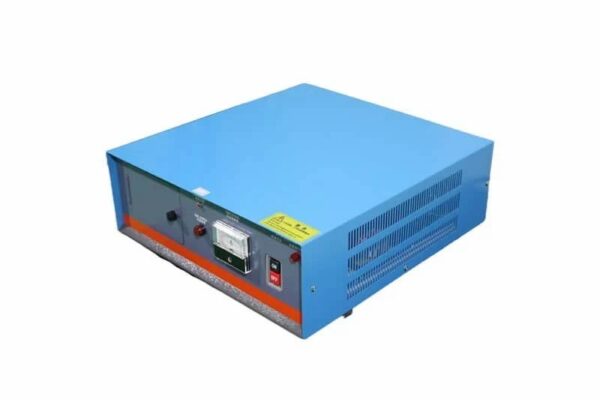

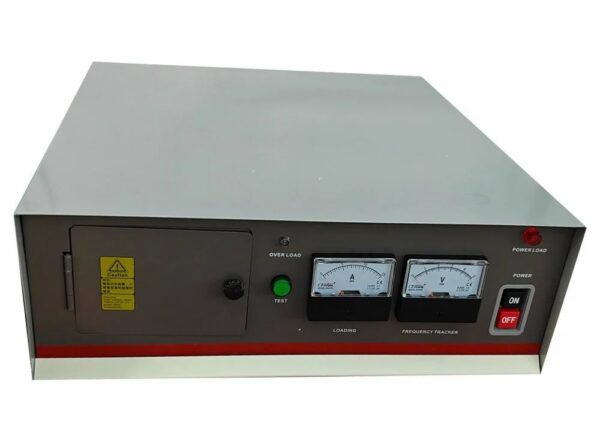

Ultrasonic Generator

Description

Generator is the core electronic unit used in ultrasonic welding systems to convert standard electrical power into high-frequency ultrasonic energy.

This energy drives the ultrasonic transducer and horn, producing high-speed mechanical vibrations that are used for plastic welding, metal welding, cutting, sealing, and industrial processing.

Ultrasonic generators play a crucial role in maintaining stable frequency, precise power control, and consistent welding quality in industrial ultrasonic machines.

How an Ultrasonic Generator Works The ultrasonic generator converts 50/60 Hz electrical input power into high-frequency electrical signals, typically in the range of 15kHz to 40kHz.

These signals are transmitted to the ultrasonic transducer, which converts them into mechanical vibrations.

The vibrations are then amplified through the booster and horn and applied to the material being welded or processed.

Key Features Digital frequency control for stable operation Automatic frequency tracking Overload and short-circuit protection High efficiency and low power consumption Stable ultrasonic output User-friendly digital control panel Technical Specifications Frequency Range: 15 kHz / 20 kHz / 28 kHz / 35 kHz / 40 kHz Power Output: 800W – 4000W Input Voltage: 220V / 50Hz Control System: Digital / Microprocessor Controlled Cooling System: Air Cooling Protection System: Overload, Overheat, and Short Circuit Protection Industrial Applications Ultrasonic generators are widely used in many industries: Plastic Welding Machines Ultrasonic Metal Welding Ultrasonic Cutting Machines Non-woven Fabric Welding Food Cutting Equipment Medical Device Manufacturing Automotive Plastic Component Welding Advantages of Ultrasonic Generators Precise power output control Improved welding consistency High energy efficiency Longer equipment life Reduced maintenance requirements JSB Automation Ultrasonic Generators JSB Automation manufactures and supplies high-performance ultrasonic generators designed for industrial ultrasonic welding and cutting machines.

Our generators are engineered for stable frequency tracking, reliable operation, and maximum welding efficiency.
